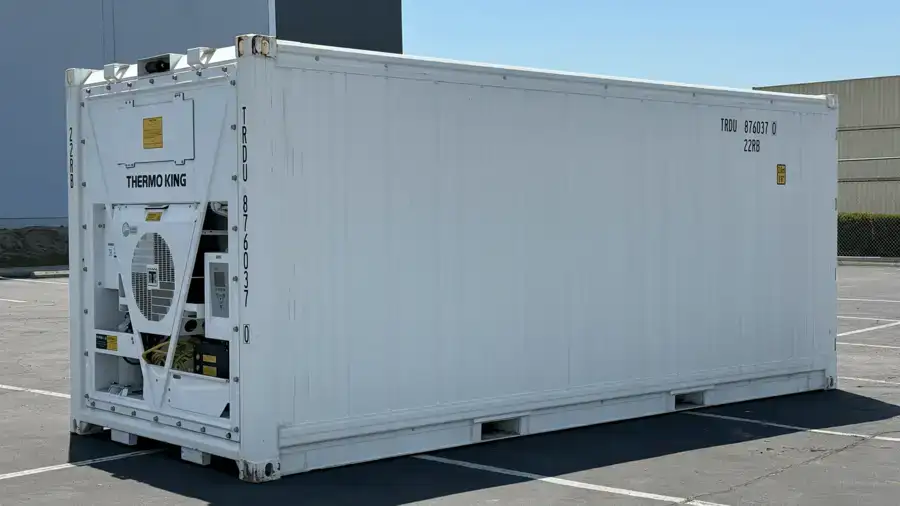

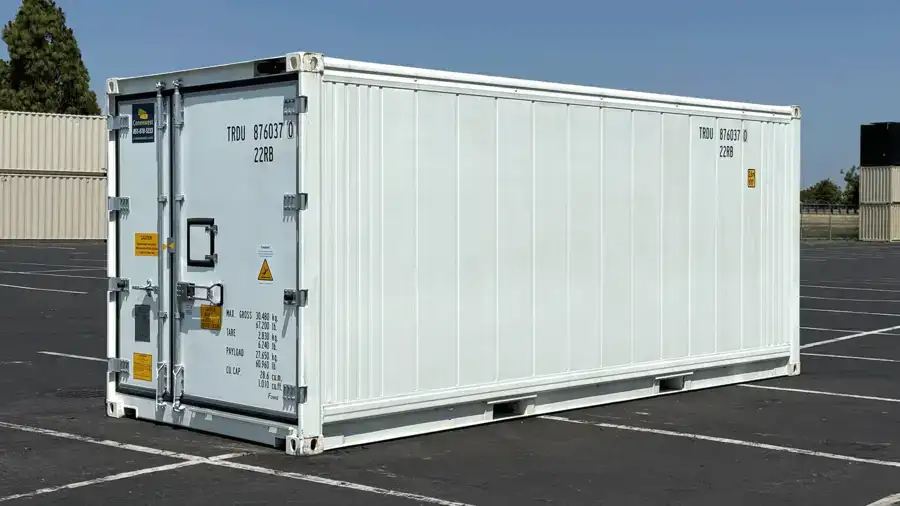

Our 20ft New Refrigerated Storage Containers are built from brand-new ISO-grade steel shipping containers and equipped exclusively with brand-new Thermo King refrigeration systems.
Designed for superior cold storage performance, these units maintain precise temperature control and are ideal for frozen goods, pharmaceuticals, produce storage, and specialty products.
The Thermo King Magnum Plus system offers an extended temperature range from -40°F to +70°F, providing industry-leading flexibility.
Each container operates on a standard 460V 3-Phase electrical connection.
An optional dual voltage transformer is available to convert power, allowing the container to operate on 230V single-phase service where 3-phase is unavailable.
In Stock
| Container Specification | Detail |
|---|---|
| Exterior Dimensions | 20’ L x 8’ W x 8’6” H |
| Interior Dimensions | Approx. 18’6” L x 7’6” W x 7’5” H |
| Cubic Capacity | Approx. 1,050 cu. ft. |
| Construction | Brand-new ISO-grade CORTEN steel |
| Insulation | 3″ high-efficiency closed-cell spray foam insulation |
| Flooring | Flat aluminum flooring |
| Doors | Dual cargo swing doors with heavy-duty weather seals |

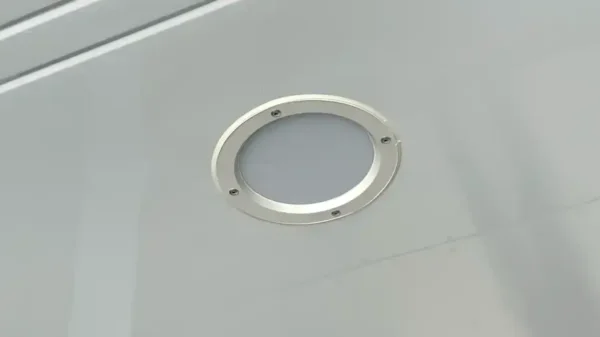

| Lighting | Interior LED lights included |

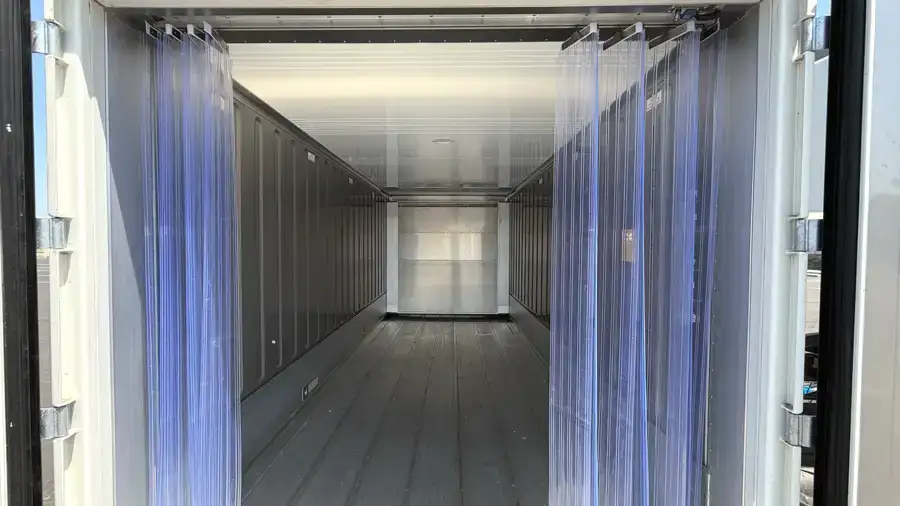

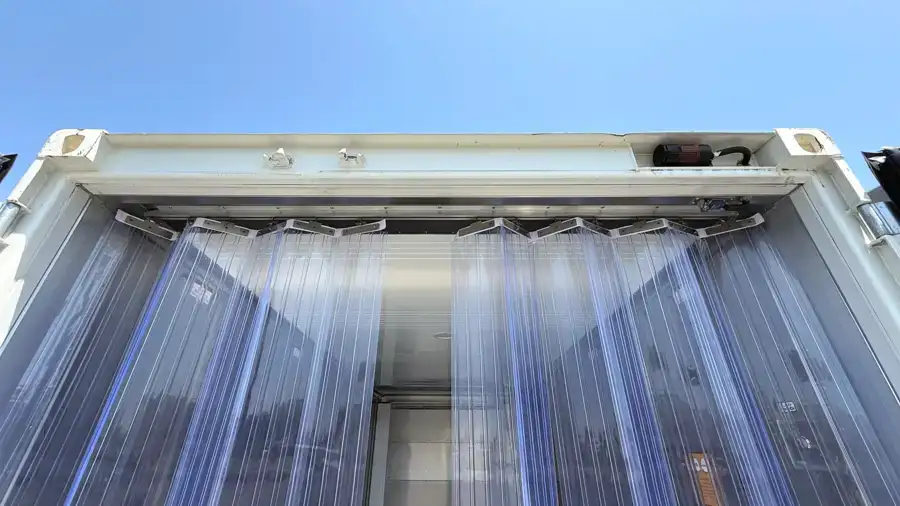

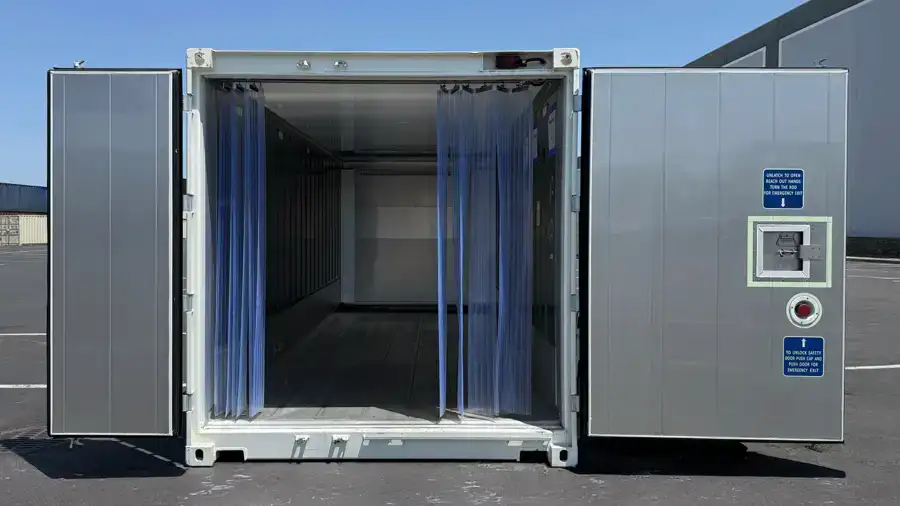

| Curtains | PVC strip curtains included at cargo door |
| Exterior Paint | Marine-grade paint finish |
| Forklift Pockets | Included for easy handling |
| Stacking Rating | ISO CSC plated for stacking (standard 216,000 lb) |
| Machinery Specification | Detail |
|---|---|

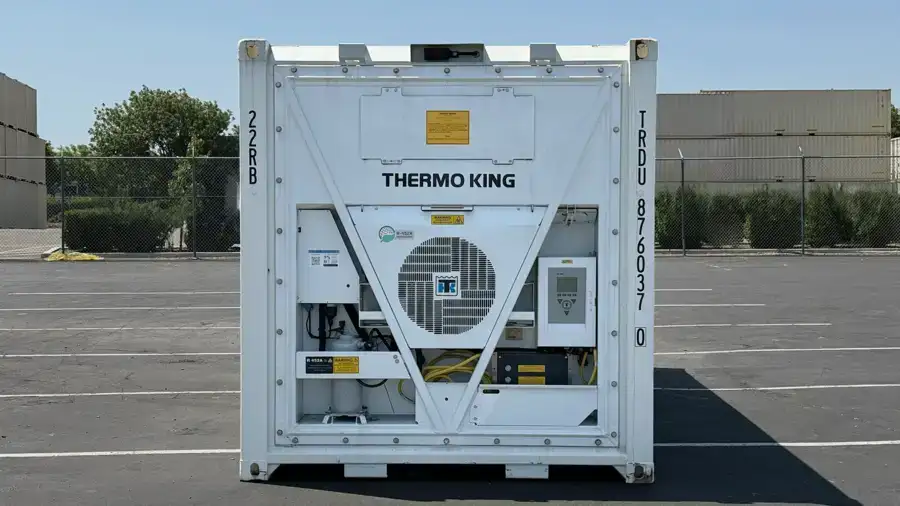

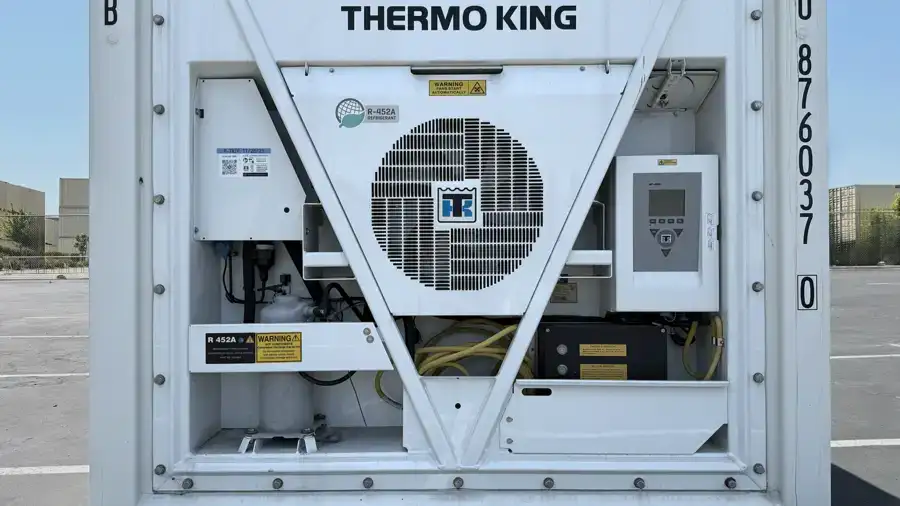

| Machinery Type | Thermo King Magnum Plus (brand-new) |
| Cooling Capacity | Approx. 16,000 BTU/hr at -20°F container setpoint |
| Temperature Range | -40°F to +70°F |
| Controller | Thermo King MP-3000a Microprocessor Controller |
| Airflow | 2,200 CFM evaporator airflow |
| Defrost System | Automatic electric defrost with programmable cycles |
| Refrigerant | R-404A |
| Compressor Type | Scroll compressor with vapor injection |
| Voltage Requirements | 460V 3-Phase standard |
| Power Draw | Approx. 8–10 kW under full load |
| Optional Voltage Converter | Available for 230V single-phase operation |
| Data Monitoring | Built-in data logging and remote monitoring ready |
| Dehumidification | Standard mode adjustable 20% to 95% RH |
| Special Features | Economy mode, temperature hold mode, auto defrost, diagnostics, alarm system |
 |

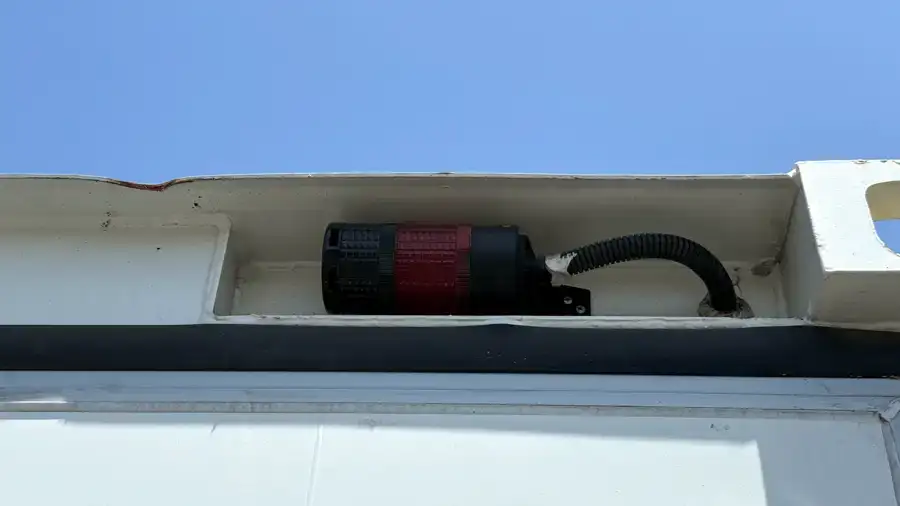

Container Plug BRY430P7W 480 V 3 Ph 30 Amp
Wiring Color Codes:
NO NEUTRAL! 3 Phase WYE Only! |
 |
3” Insulated Walls
Fully insulated with 3” foam to maintain a constant internal temperature. Covers, walls, ceiling and floor.
|
 |

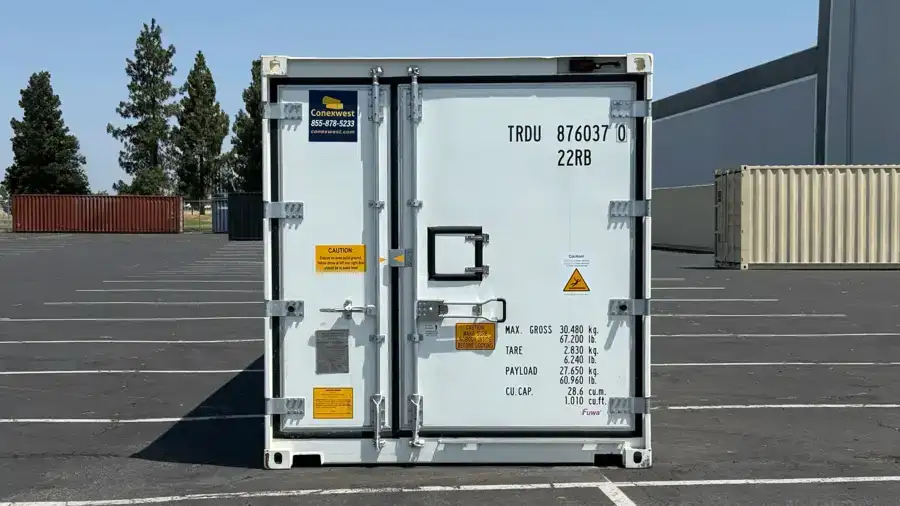

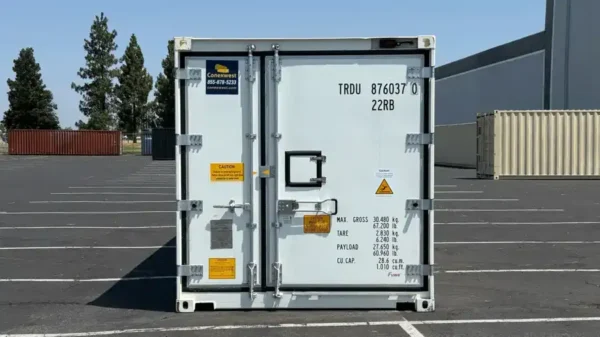

Secure Closing Cargo Doors with Locking Rods
The secure closing cargo doors provide a tight and protective seal. Fit with locking rods that engage at multiple points of contact along the top and bottom of the container.
|
 |
Corner Castings
All storage containers for rent come standard with corner castings. They allow for stacking; lifting with a crane; and absorb the weight of the container.
|
 |
Aluminum Flat Floor
Strengthened thermal treated aluminum floor. Withstands abrasion from foot traffic, equipment and repeated use. Keeps the contents of the container elevated so that cold air can flow underneath. |
 |
Two-way Forklift Pockets
Conveniently placed for mobility around the job site. Can be moved with a 15,000 lbs forklift. |
